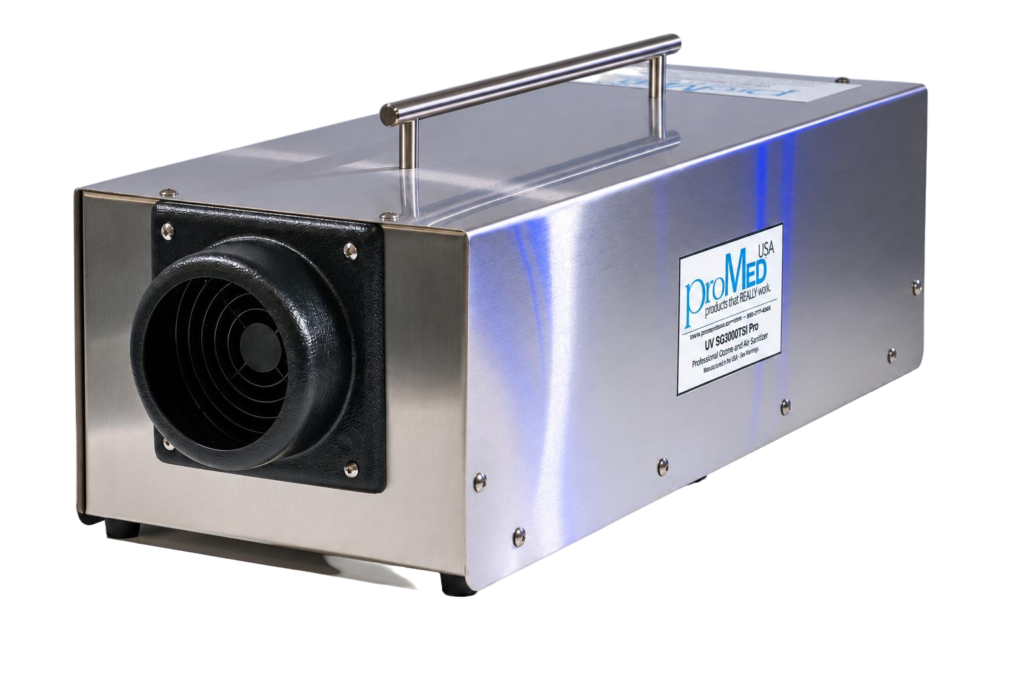

UV SG3000T36 Pro Ozone Generator
This is where the range steps up from smaller output portable units to larger (but still portable) commercial equipment.
Five output levels from 600 up to 3,000 mg/h. It clears a 350 cubic metre space in ten to fifteen minutes, and a space of up to 11,100 cuM in 1 to 2 hours. Built for the jobs that never stop smelling — ballrooms, food festivals, heavy smoking areas, bin centres, grease trap rooms and compactor rooms.
The outer case is 18 gauge brushed 316 stainless steel — rust proof, and built to be left running in a bin room or a plant room without complaint. The UV tubes sit in industrial shock mounts. Works up to 98% relative humidity, from −10°C to +50°C.
UV SG3000T36 Pro Specifications
| Specification | Detail |
|---|---|
| Ozone output (also called Activated Oxygen) | 600 to 3,000 mg/h |
| Output levels | Five |
| Ozone Generation Method | 5 High Output, UV Tubes (Made exclusively for ProMedUSA) |
| Warranty | 6 YEARS on the Ozone Generator, 2 YEARS unconditional warranty on the UV Tube (not pro-rated) |
| Coverage area | Up to 11,100 cubic metres |
| Power | 220-240VAC, 50/60 hz; 2 Amp |
| Size and Weight | 60 X 23 X 18 CM; Just 8 KG |
| Construction | The outer case is rust proof, 18 gauge brushed 316 stainless steel —. It is built to survive years of intense use. |
| Timer | 9 Position Electronic LED Timer - automatic settings from 10 minutes to 36 hours |
| Temperature & Humidity Range | −10°C to +50°C. Up to 98% relative humidity |
What It Is Used For

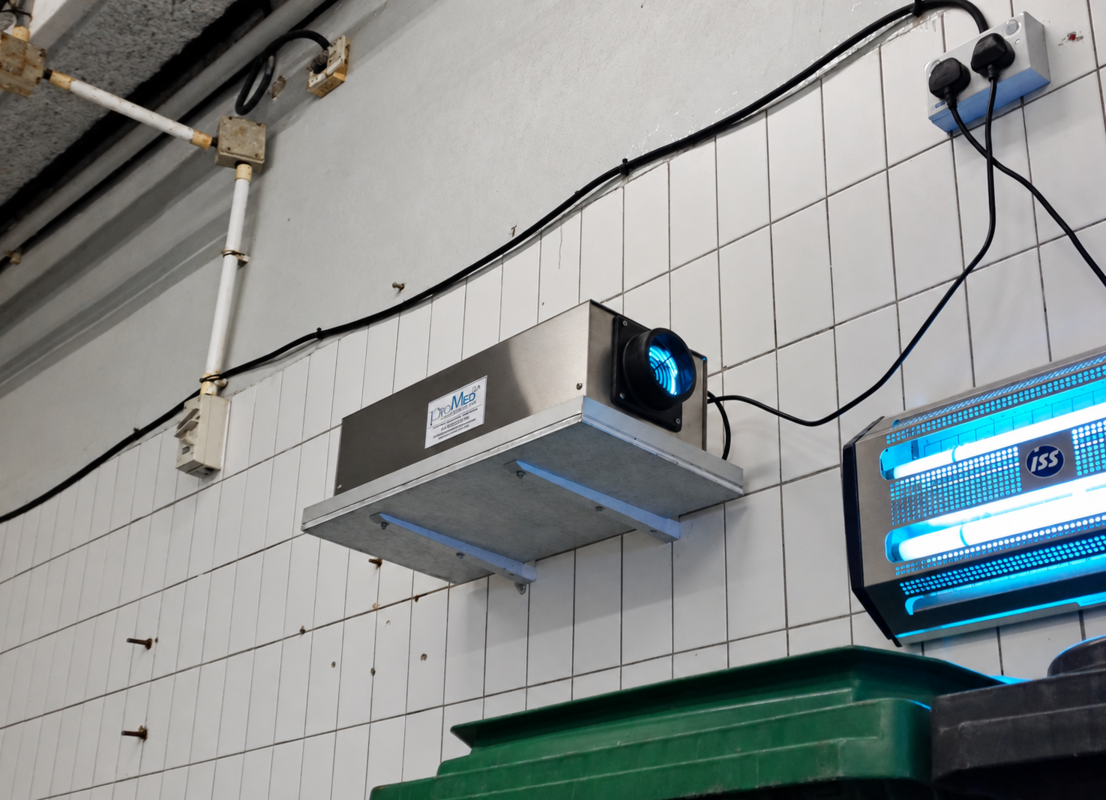

Bin centres and refuse rooms. Grease trap rooms. Compactor rooms. Large renovation jobs. Warehouses and store rooms.
These UV ozone generators are often in empty rooms or bin centres or a space where people walk in and out of quickly. Otherwise, turn the unit off and wait a few minutes for the ozone to revert back into plain oxygen before going back into the room.
Maintenance
Replace the rear filter on the back about every three months, depending on how dirty it gets. It takes less than 30 seconds (snaps on and off) needs no tools, and your own staff can do it. Replacement filters cost just $3.00 each.
The UV tubes typically last two to four years in normal use and we supply replacements. Depending on the environment, occasionally open the UV SG3000 and wipe down the tubes with soap and water, or preferably alcohol, and let them dry thoroughly before turning the unit back on. Again, you can do it yourself. You don’t need a maintenance contract.
That is the whole maintenance schedule.
Warranty
All ProMedUSA UV ozone generators have a 6 (six) year International warranty on the ozone generator and our UV Tubes are unconditionally guaranteed (not pro-rated) for 2 full years.
If the machine fails inside six years we repair it free of charge. If a UV tube fails inside two years we replace it free of charge.
Questions People Ask Us
Depending on odours, about 350 cubic metres in ten to fifteen minutes. Up to 11,100 cubic metres in one to two hours.
A typical hotel bin room sits comfortably inside the first figure. The larger number is for warehouses, loading bays and big refuse areas.
Yes, it’s designed to run continuously, 24/7. However, with the standard LED timer you can set it for a specific length of time or we can instal;l a wall mounted timer for daily on-off cycles.
Size and duty. The MiniPro models are 3 kg and carried room to room on a housekeeping trolley. This is 8 kg, 60 cm long, and built to be carried into a very large space or installed in a room and left there.
The MiniPro clears a guest room in fifteen minutes. This clears a bin room and keeps clearing it.
Â
Yes. Five output levels from 600 to 3,000 mg/h, set with three switches on the back.
We repair it, free of charge, for six years. The UV tubes are covered for two years with no conditions.
UV SG3000’s we sold in 2013 are still working.
Comparing Models?
UV SG1300AT36 Pro — adjustable 20 to 1,200 mg/h, for function rooms and meeting rooms.
UV SG4200T36 Pro — 4,200 mg/hr of ozone – more output for heavier refuse and renovation work.
Not Sure Which Size You Need?
Not sure if the UV SG600T36 MiniPro is suitable for y
Tell us the room, what is in it and how bad it gets. We will tell you which model fits and what setting to run it on.
We have been supplying these to hotels, food courts, shopping centres, hospitals and building managers across Singapore and Malaysia since 2006.
our space? Tell us what you need to treat, and our team can advise on the appropriate ozone generator, treatment requirements and next steps.
